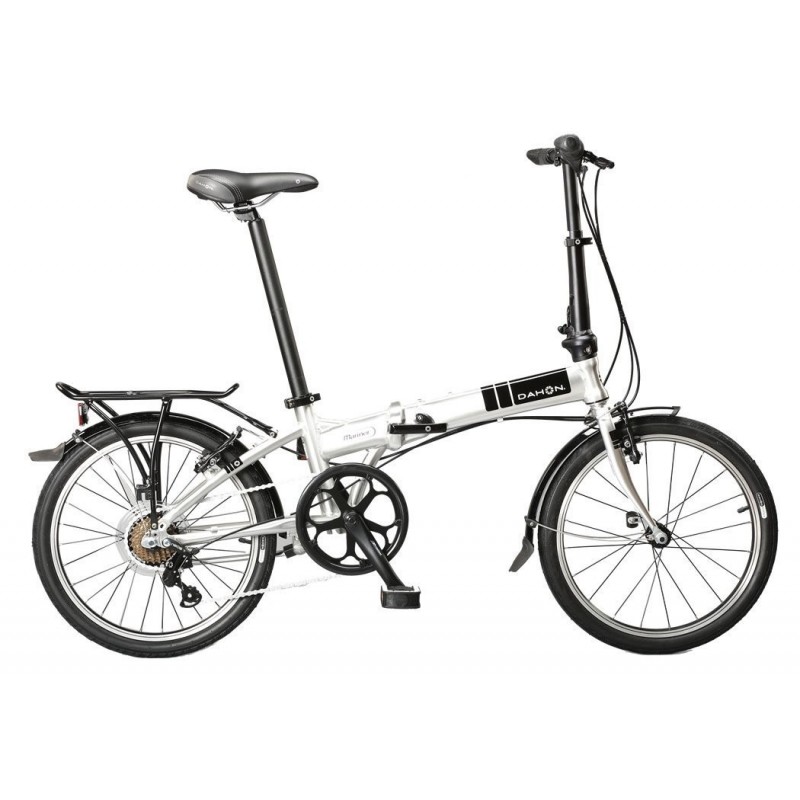

Modelo 410112 BICICLETA R.20 DAHON MARINER D7 PLEGABLE 2015

A frequent winner of folding bike shootouts that include bikes that cost up to four times as much, the Mariner is one of our most popular bicycles. It’s a highquality, lightweight bike at a surprisingly affordable price. Its portability makes the Mariner ideal for trips that include a stretch by bus or train – perfect for multi-modal urban transport.


Wheel Size
20"
Folded Size
28 × 81 × 66 cm (11" × 31.9" × 25.7")
Weight
11.8 kg (26 lbs)

GENERAL INFORMATION
Speeds INTER-7 SPEED
Frame Sizes 1
Gear Inches 37" - 85"
Distance: Seatpost to Handlebar Min: 610 mm (23.8") Max: 635 mm (24.8")
Distance: Saddle to Pedal Min: 695 mm (27.1") Max: 955 mm (37")
Folded Size 28 x 81 x 66cm (11" x 31.9" x 25.7")
Folding Time 15 sec
Weight 11.8 kg (26 lbs)
Suggested Rider Height 142 - 193 cm (4'8" - 6'4")
Max. Rider Weight 105 kg (230 lbs)
FRAME
Frame KM SERIES, 7005 ALUMINUM ALLOY, VISEGRIP TECHNOLOGY
Fork ALUMINUM, INTEGRATED
COCKPIT
Handlepost

RADIUS TELESCOPE, ADJUSTABLE, PATENTED FUSION AND V-CLAMP TECHNOLOGIES, FORGED ALUMINUM
Handlebar 6061-T6 ALUMINUM
Headset DAHON FUSION+ ZERO STACK, CATRIDGE BEARINGS
Grips XH-G51 90 mm/125 mm BLACK WITH "O", PVC
Saddle VL3057A, BOTH COLORS (BLACK AND GREY)
Seatpost SP-22, 34 x 580 SILVER
Seat Clamp DAHON COVERT, HIGH LEVERAGE DESIGN
BRAKES
Brakes DHV-107 W/O LOGO, SILVER
Brake Levers DHL-42G W/O LOGO
Brake Cables 2P, BLACK HOUSING, BLACK CABLES
WHEELS
Front Hub FM31-F 3/8 x 14 G x 20 H x 74 x 110 mm
Rear Hub FM32-7 3/8 x 14 G x 28 H x 130 x 170 mm
Spokes STAINLESS
Rims ALUMINUM
Tires K-1045 20"x1.75"
TRANSMISSION
Shifter(s) SRAM, 7 SPEED
Crankset KINETIX SUPARA, FORGED CRANKS, ALLOY CHAINGUARD
Bottom Bracket CH-302
Chain KMC Z-51, ANTI-RUST
Pedals FOLDING BOTH SIDE, NW-319
Shift Cables SlS OR SP, BLACK
EXTRAS
Kickstand NH-KC19AA, SILVER
Luggage Socket FRAME INTEGRATED
Clip System MAGNETIX SYSTEM
Rear Light OPTION: DAHON TALL LIGHT OR SPANNINGA DELUXE FOR RACK
Mudguards OPTION: SKS MINI 20
Rack(s) OPTION: ARC RACK WITH LUGGAGE STRAP
Chain Guard DAHON FREEDRIVE
